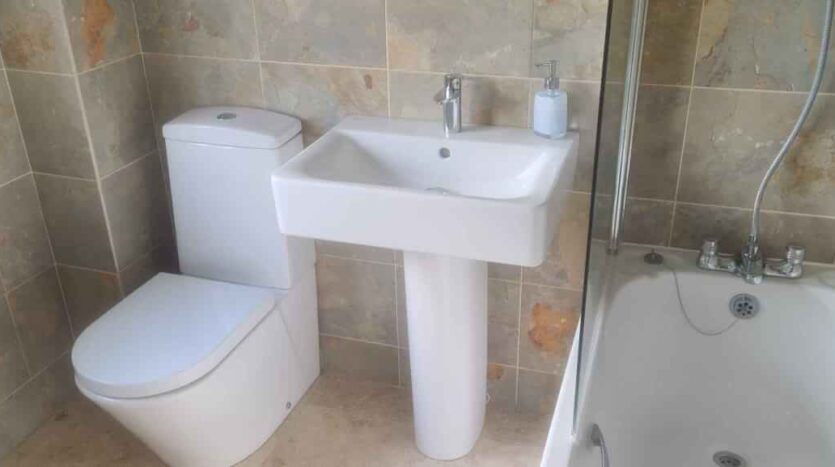

Replacing a basin tap

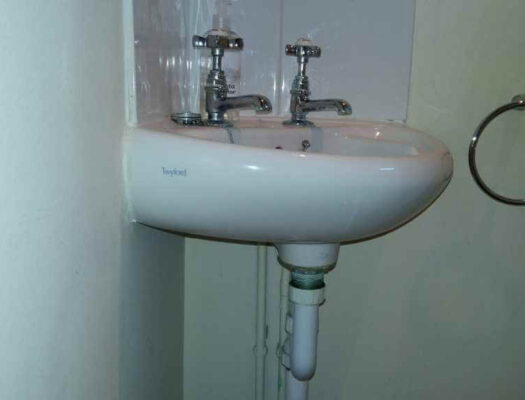

We had a project to replace an old basin tap. It was of the waterfall style which meant over the years it had gotten very blemished by the ravages of the hard water that is found in this area. The spout of the tap had become very marked due to the continual cleaning of the surface.

The tap is being replaced by a normal modern type round pipe spout tap which also has eco water-saving credentials and will be easier to maintain.

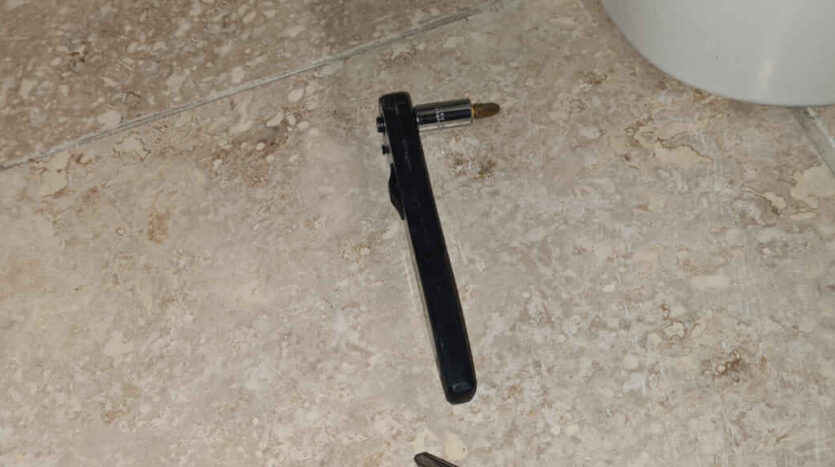

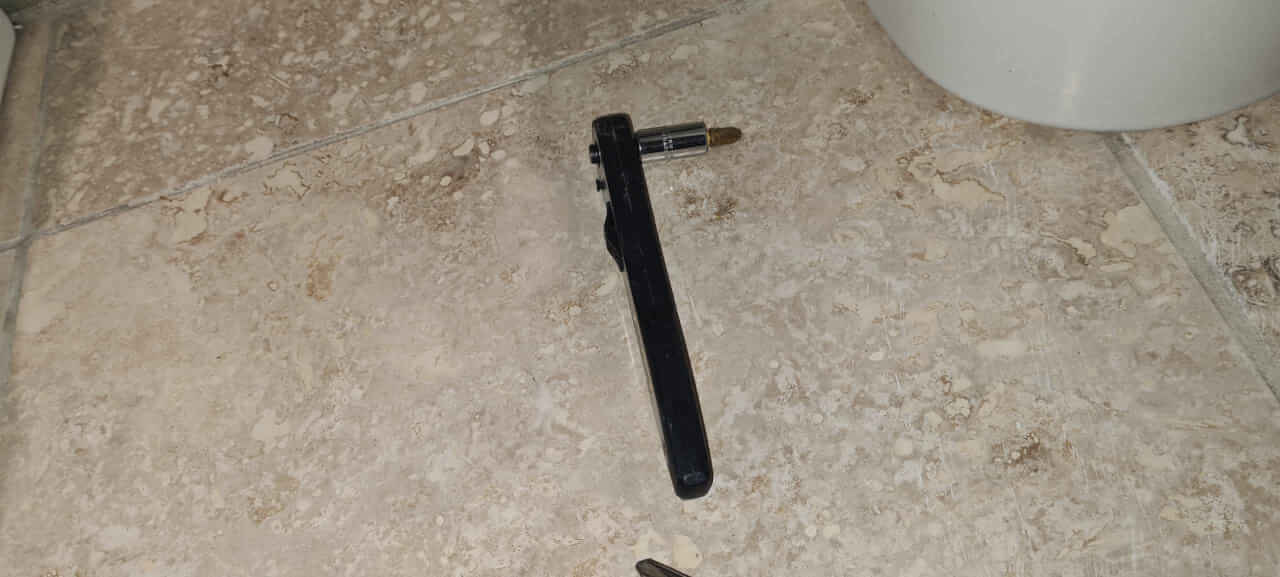

Ratchet with cross head bit to tighten basin screws
Ratchet with cross head bit to tighten basin screws

The first job was to loosen the basin screws using a ratchet with a cross head bit that will fit into the tight space on the underside of the sink.

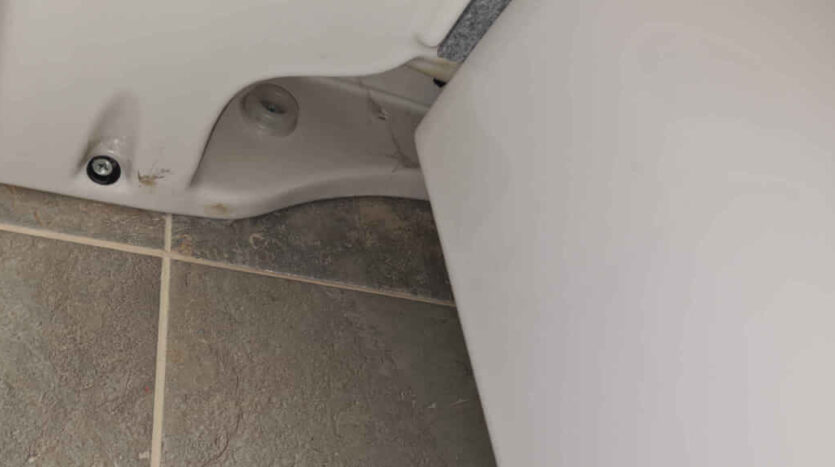

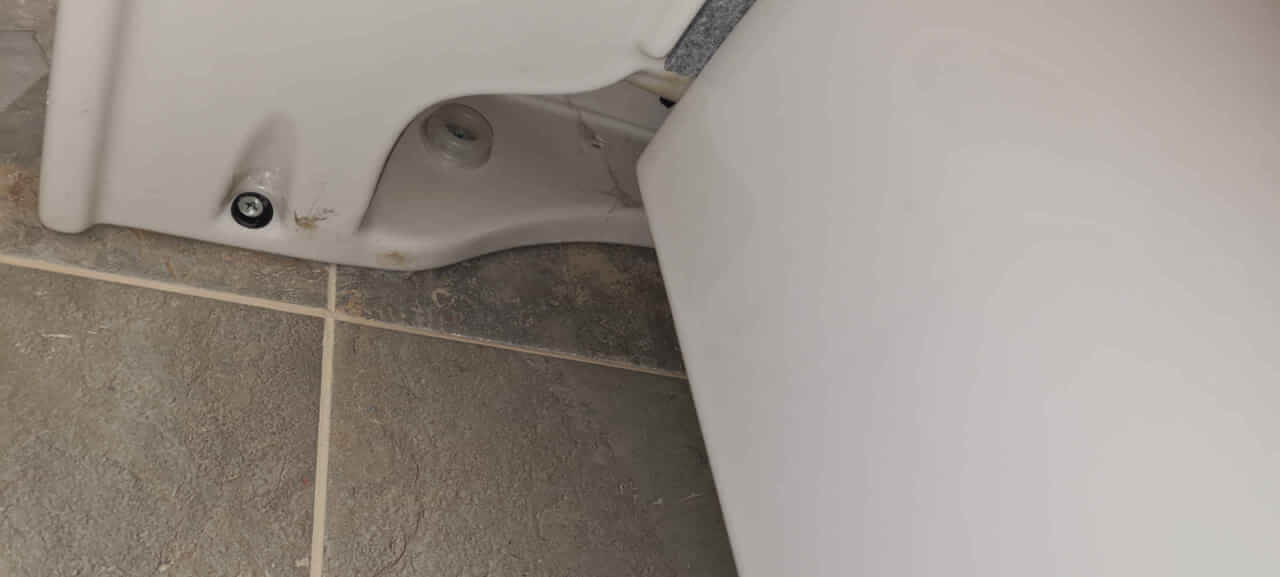

Basin fixing screws
Basin fixing screws

Once the basin screws had been loosened it made it possible to pivot the basin up and prop it up on some strips of wood using tapered wedges underneath the strips to get the right height.

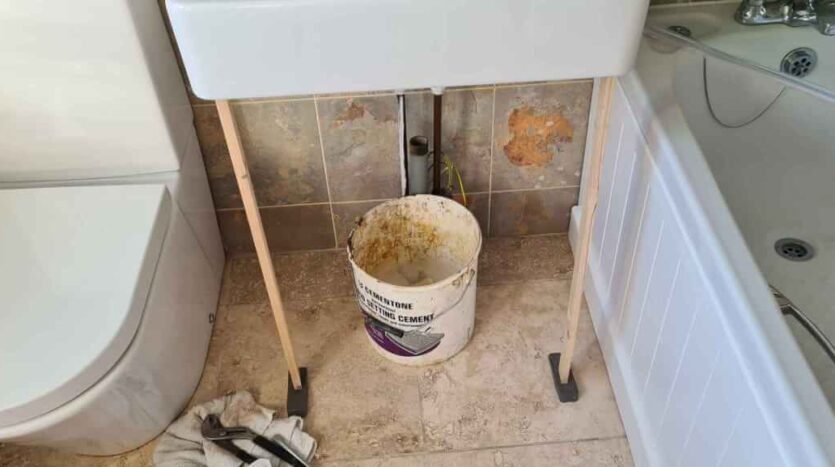

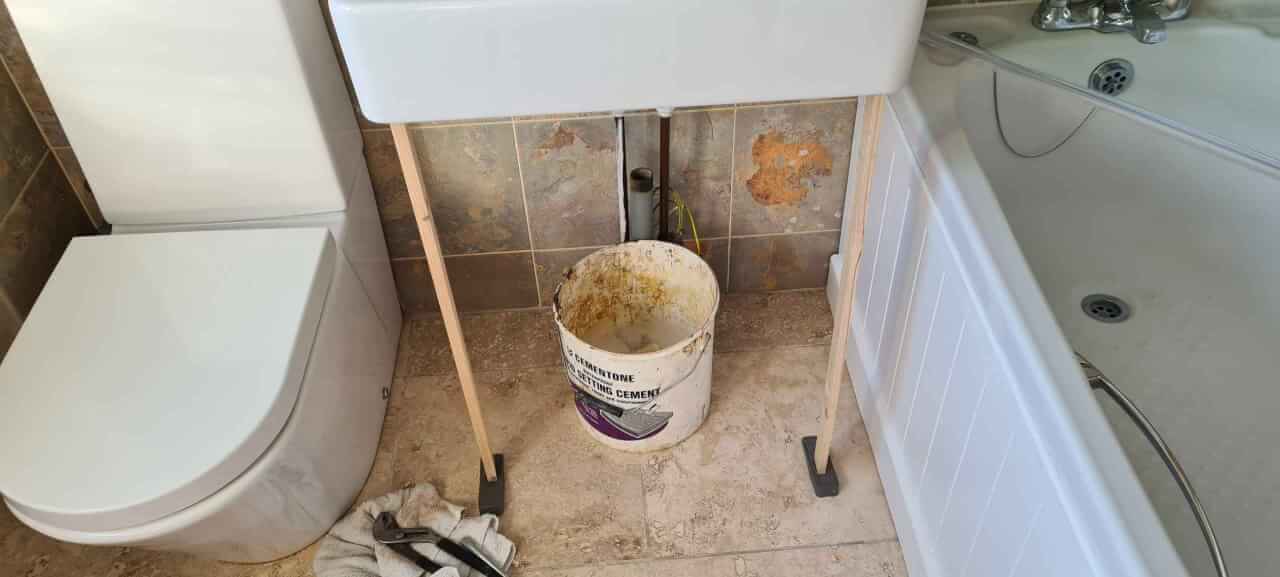

Loosen basin screws and prop up sink to enable pedestal to be extracted
Loosen basin screws and prop up sink to enable pedestal to be extracted

Once propped up it made it possible to wiggle the porcelain pedestal out from underneath the basin.

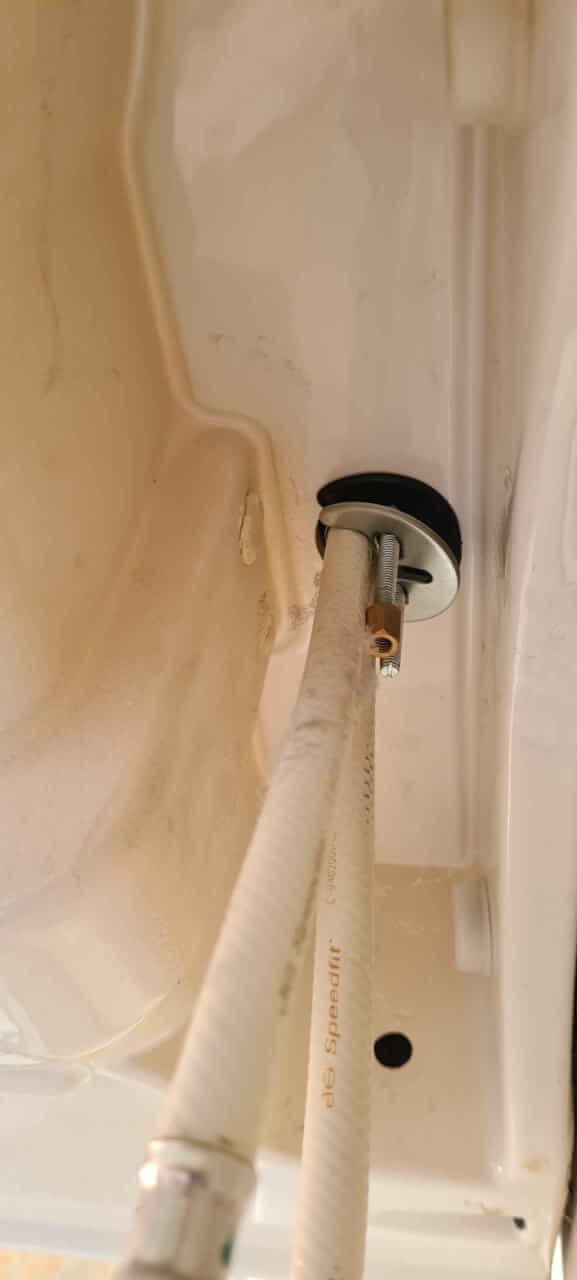

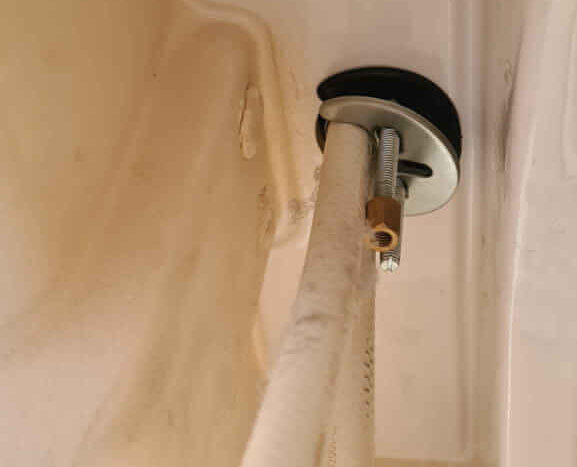

Remove old basin bolt and horshoe bracket
Remove old basin bolt and horseshoe bracket

The next job was to remove the basin tap bolt and nut with a double-ended monoblock tap spanner and tommy bar. This allowed the old waterfall tap to be disconnected, after turning off the water,  and removed and then unscrew the trap connectors from the basin and the waste pipe.

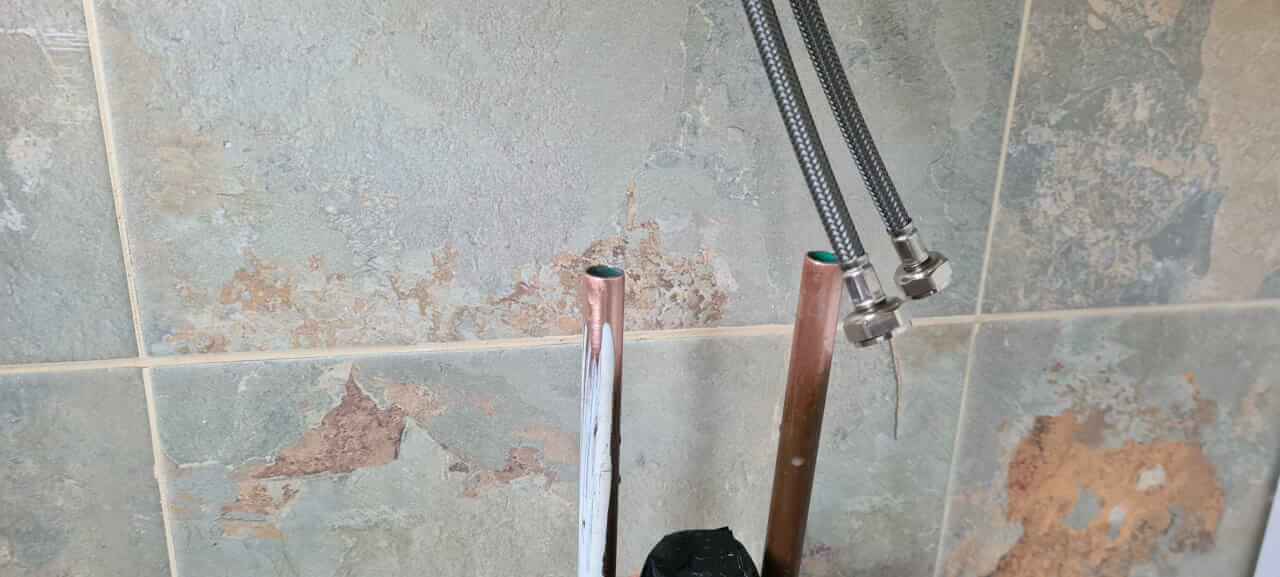

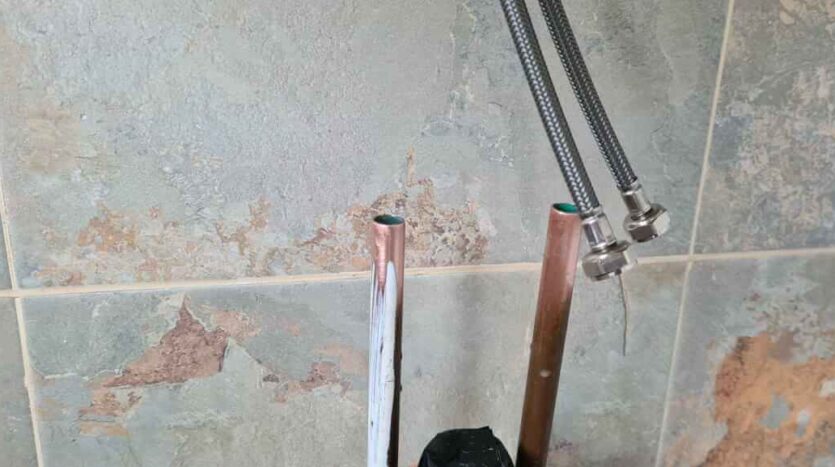

Cut and and cleanup pipes ready for connectors
Cut and and cleanup pipes ready for connectors

The hot and cold water supply pipes were then cut to the right size and cleaned up removing old paint and deburring the inside and outside of the cut edges so as not to damage the pushfit connectors when they came to be applied.

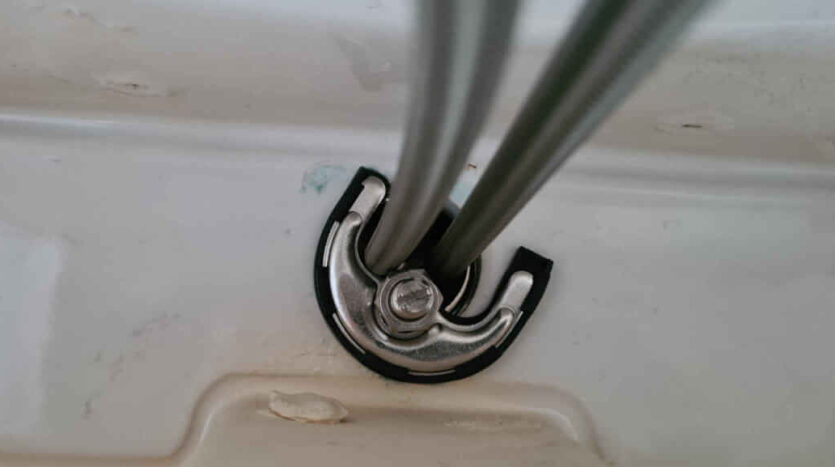

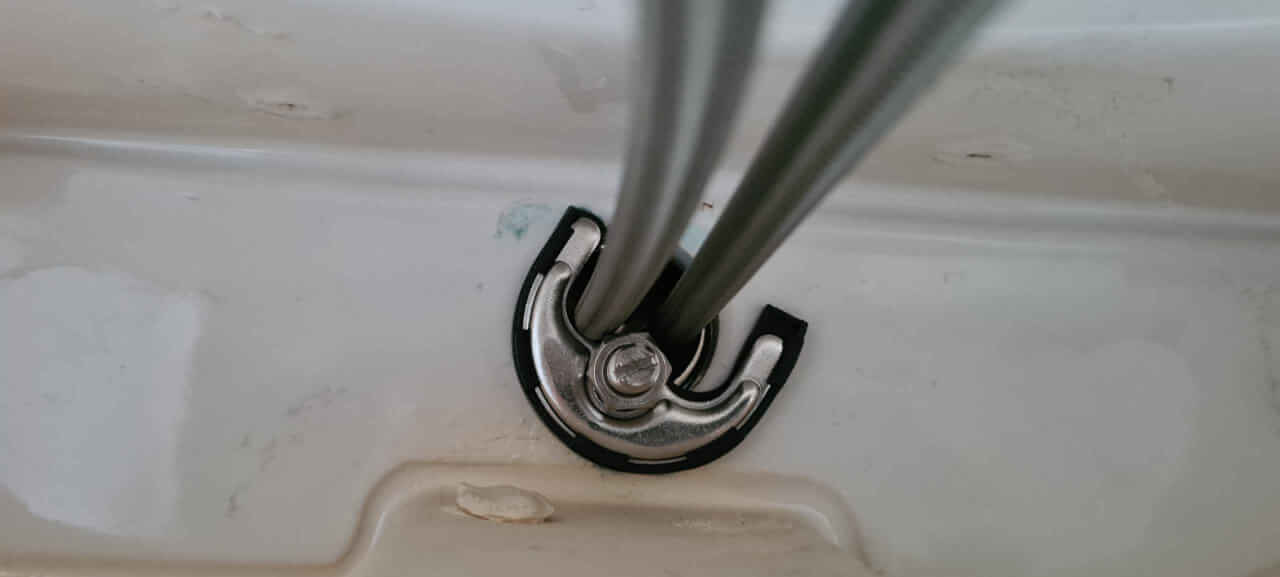

Single bolt tap fixing with horseshoe bracket
Single bolt tap fixing with horseshoe bracket

The new tap was installed with its horseshoe bracket and basin bolt and nut with the monobloc tap spanner and tommy bar.

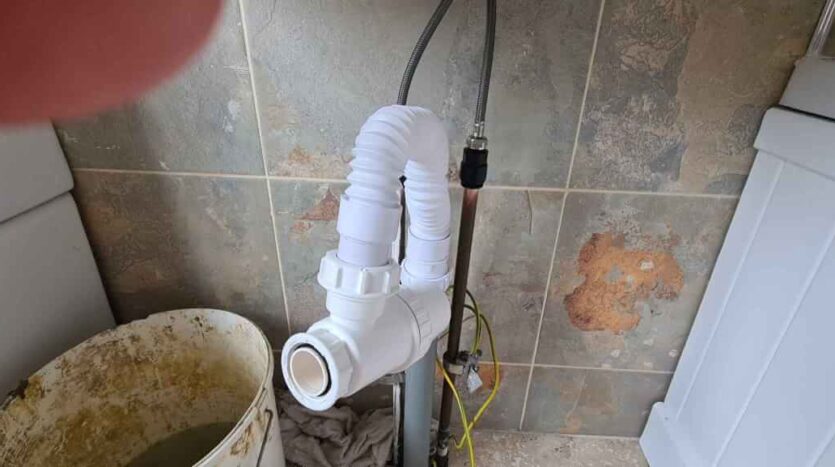

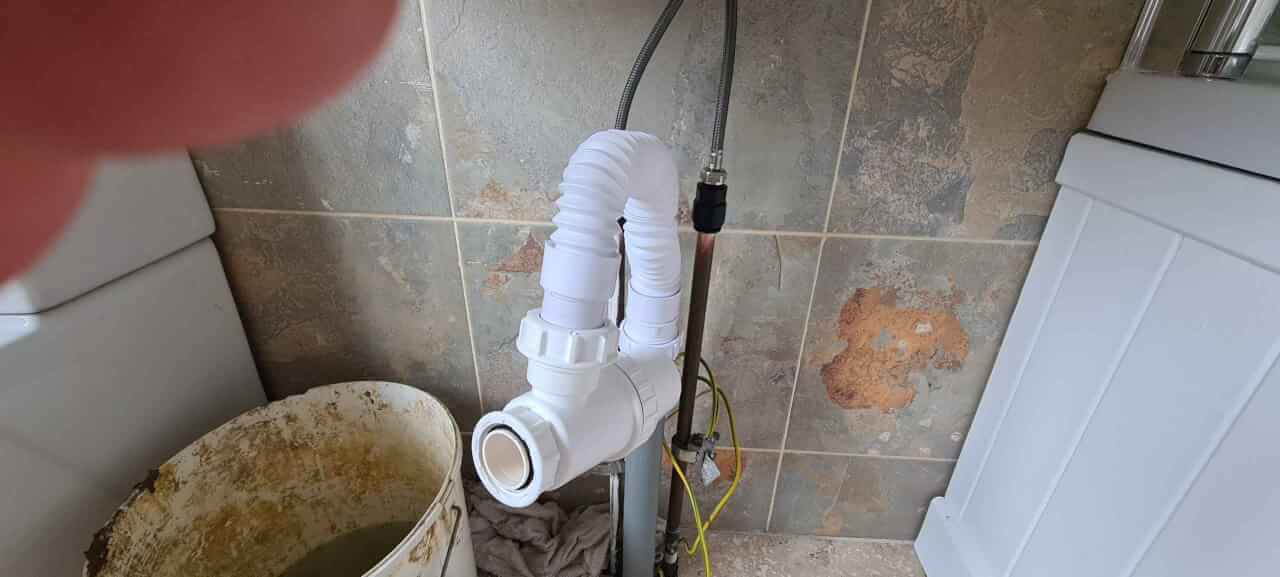

Basin trap and flexible connector
Basin trap and flexible connector

A flexible pipe with a compression fitting on one end and a screw fitting into the trap on the other was fitted to the trap.

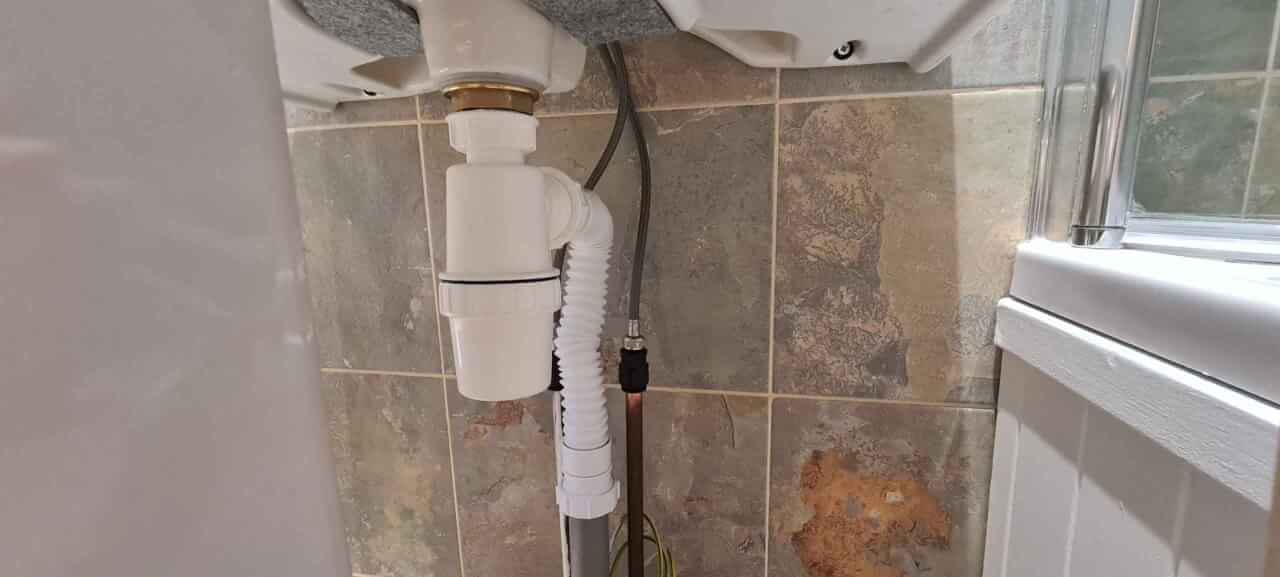

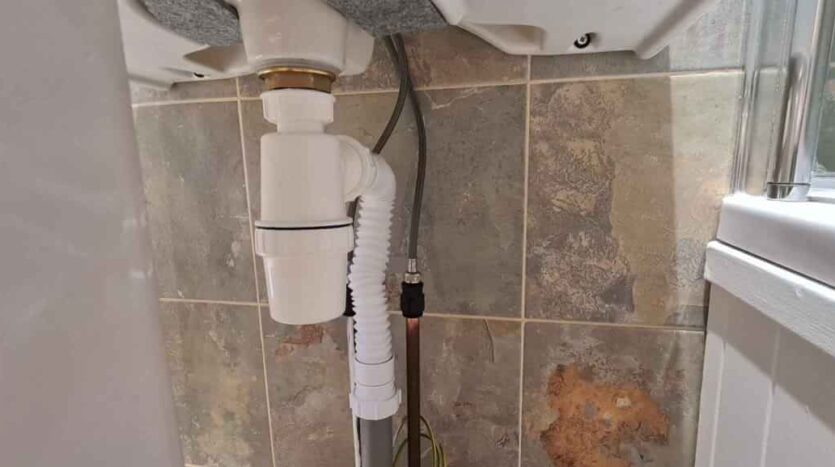

Trap connected to basin
Trap connected to basin

The new clicker waste was then screwed into position in the basin and the trap screwed into the waste exit.

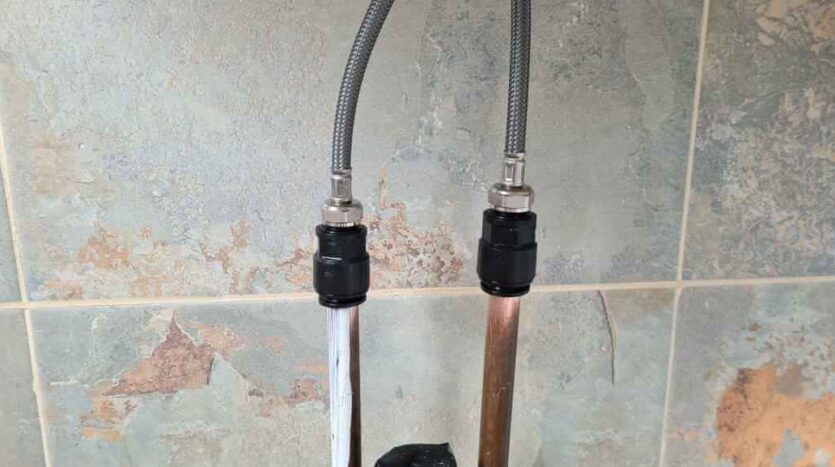

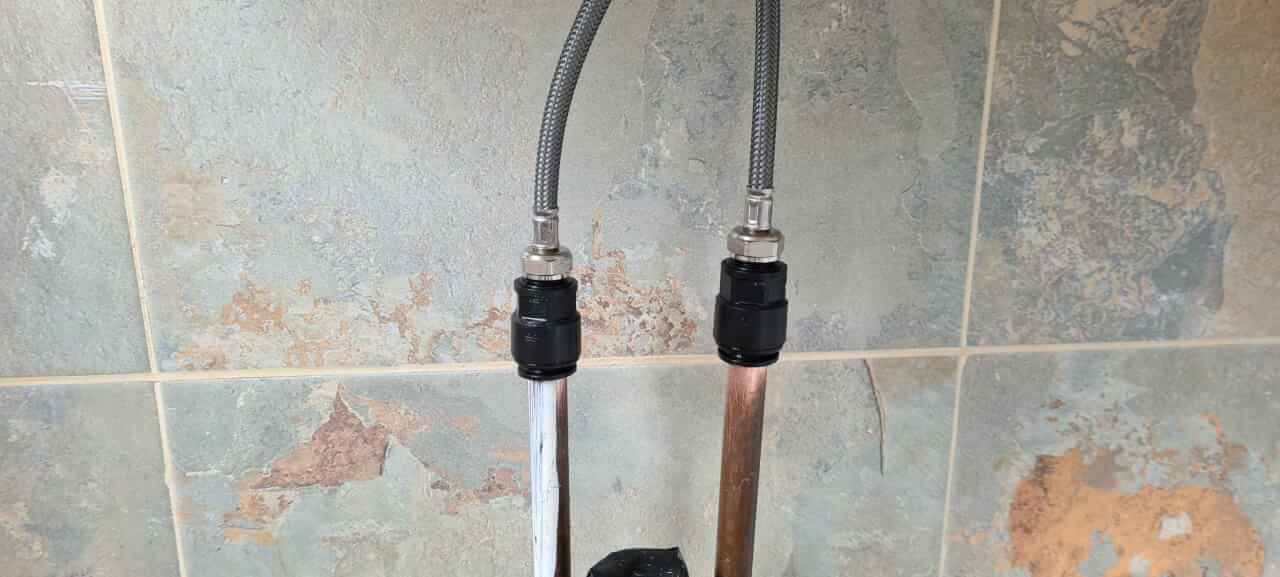

Tap connectors with 3/4 BSP into 15mm pushfit
Tap connectors with 3/4 BSP into 15mm pushfit

With the pipes prepared the flexible tap connectors were screwed into the ¾ inch BSP ends on the 15mm pushfit connectors and tightened to the correct torque rating. The pushfits were then fitted to the supply pipes. The water was then turned back on an the supply and waste was checked for leaks.

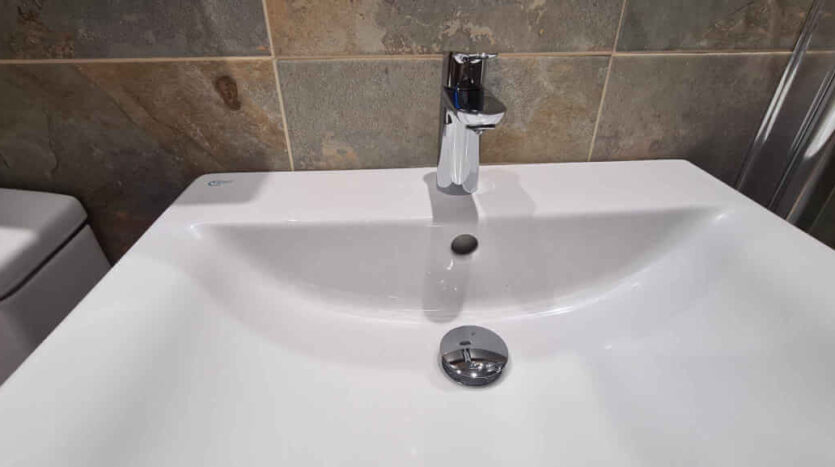

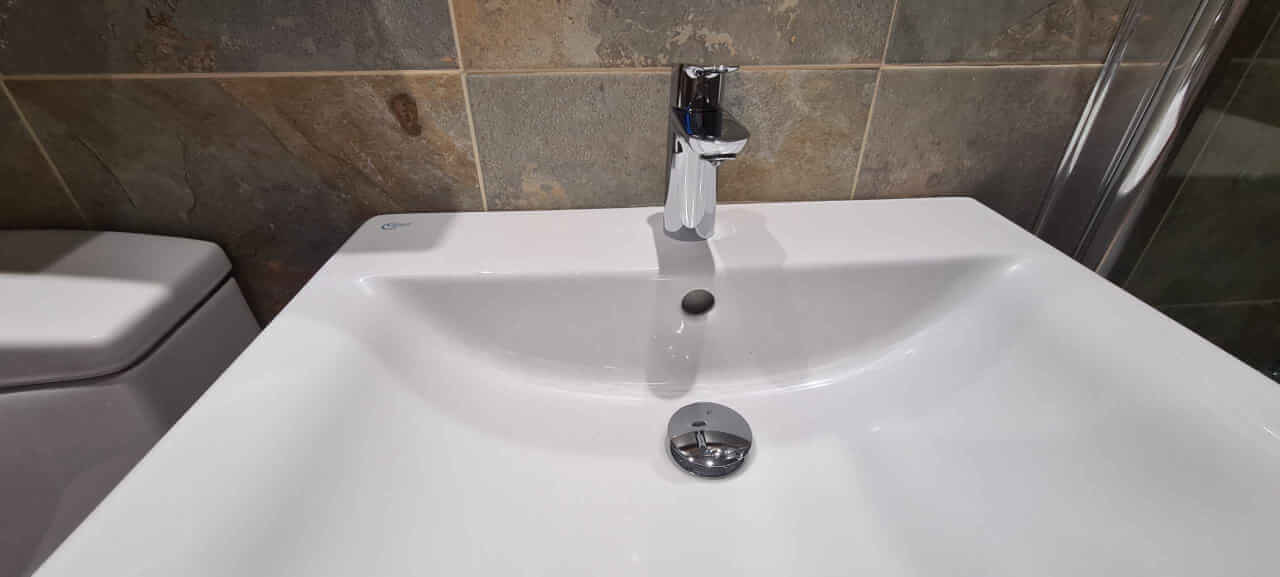

Tap and clicker waste connected
Tap and clicker waste connected

Then the pedestal was wiggled back into position with some foam padding stuck underneath. The strips of wood holding the sink up were then removed and the basin screws tightened up.
